Groundwater Source Protection Zones: What They Are and What They Change

A groundwater source protection zone is an area the Environment Agency draws around a groundwater drinking water abstraction to show how quickly a pollutant released at that point would reach the supply. There are over 2,600 of them in England. They are not a planning designation, they appear nowhere in the National Planning Policy Framework, and the Environment Agency is not a statutory consultee on them. Yet since October 2023 the innermost zone has carried a definition in statute, and three permitting exemptions stop existing inside it as a matter of law. Much of the published guidance on source protection zones still says otherwise.

The mapped zone is not a statutory designation. The concept of source protection zone 1 has been defined in the Environmental Permitting Regulations since 2 October 2023.

That distinction decides what an objection is actually made of, and whether it can be argued with.

What is a groundwater source protection zone?

A source protection zone is a travel-time map. The Environment Agency models how long water takes to move through the ground to a specific abstraction point, then draws contours at fixed intervals: 50 days, 400 days, and the whole catchment feeding the source. The closer to the abstraction, the less time there is for a pollutant to be diluted, degraded or intercepted before it arrives.

Zones are produced for supplies intended for human consumption or food production: public water supply, commercial potable supplies including mineral and bottled water, and groundwater used in commercial food and drink production. Abstraction used only to irrigate crops does not attract one, and the Environment Agency sets out the wider framework in its guidance on protecting groundwater and preventing groundwater pollution.

The purpose is screening, not assessment, and the Environment Agency is explicit about the difference. Its groundwater protection position statements describe source protection zones and aquifer designations as "generic indicators of risk", and warn that they "are not site-specific risk assessments". A zone tells a regulator where to look harder. It does not say what a particular development would do.

For most development the consequence lands in one document. Rainfall has to go somewhere, the ground is usually the preferred destination, and a source protection zone constrains exactly that. Which is why an SPZ constraint is normally settled in the surface water drainage strategy prepared for the planning application rather than anywhere else.

The four zones, and the one most guides get wrong

Four zones exist, plus a set of extensions that catch subsurface work. Several widely read guides list only three and describe the fourth as abolished, which has not been correct since 2019.

The extended zones carry a c suffix — SPZ1c, SPZ2c and SPZ3c. These apply where the aquifer is concealed beneath at least 10 metres of low-permeability cover. The surface is protected, so ordinary surface activity is not the concern; what the c zone captures is work that punctures the protective layer. Deep drilling, piling, boreholes and ground source heat loops are the activities it exists for. A constraints plan built for zones 1, 2 and 3 alone drops them silently.

SPZ4 has a more complicated history than most sources admit. It was defined from 1996, discontinued in 2009, and reinstated in the Environment Agency's March 2019 production manual, which records "the reinstatement of SPZ4" among the changes made. It is rare, and it usually marks a stream sinking into karst, where travel times collapse from months to hours.

Are source protection zones statutory?

Partly, and the split is the single most useful thing to understand about them.

The mapped zone is not a statutory designation. No order designates it, no statute names the polygon, and on MAGIC the layer sits under non-statutory designations. The Environment Agency's own guidance says source protection zones "are not statutory but they do relate to distances and zones defined in legislation where certain activities are restricted".

The concept of SPZ1, though, now sits in the Environmental Permitting (England and Wales) Regulations 2016. A definition was inserted into regulation 2(1) on 2 October 2023 by amending regulations made that year: a zone within 50 metres of a point at which water is abstracted for domestic or food production purposes, or defined by a 50-day travel time to such an abstraction, whichever is larger.

That definition is geometric and does not cross-refer to the published map. A site can sit inside a statutory SPZ1 because of an unmapped borehole next door, while lying outside every polygon in the dataset.

What the definition does is switch off three permitting exemptions in Schedule 3 of the same Regulations.

• Small sewage discharges. The exemption is unavailable where the discharge inputs pollutants to groundwater within SPZ1, so a septic tank or treatment plant that would otherwise meet the general binding rules needs a permit instead — and it may not be granted.
• Open-loop ground source heating. The exemption fails where water from the system is discharged within SPZ1.
• Closed-loop ground source heating. The exemption fails where any part of the system sits within SPZ1, or within 50 metres of a well, spring or borehole supplying water for domestic or food production purposes. The full exemption conditions run to nine tests.
• Everything else is policy. Landfill siting, waste operations, infiltration drainage, physical disturbance of the aquifer and sewer pipework specification are Environment Agency position statements, carried through planning consultation and permit decisions rather than statute.

That is not a weaker constraint in practice, but it is a different argument. Policy responds to site-specific evidence. A disapplied statutory exemption does not.

How to check whether a site is in a source protection zone

The zones are published as open data under the Open Government Licence and can be checked in a few minutes.

1. Open the MAGIC map and work down the table of contents: designations, then land-based designations, then non-statutory, then source protection zones merged (England).
2. Note the zone number and any c suffix. The suffix changes which activities are caught, because it flags a subsurface rather than a surface constraint.
3. Pull the polygon itself from the Defra Data Services Platform if the site boundary sits anywhere near an edge. The layer is available as shapefile, GeoJSON and a web service.
4. Check the two companion layers separately — aquifer designation and groundwater vulnerability. They answer different questions, and neither is interchangeable with a zone, nor with the separate question of where the water table sits.
5. Establish whether any private supply sits within 50 metres of the site, which no map will tell you.

Two caveats matter once a zone is found. The dataset is mapped at 1:50,000 with a stated ground accuracy of 10 metres and no topology, so a boundary is not a surveyed line. And the rule for a site straddling one is unambiguous: where an activity straddles the boundary, "the activity will also be considered inside".

The pattern across a real landscape looks like this. The frame below runs from Littlehampton to Brighton over the South Downs Chalk and holds every zone the published dataset maps within it, which is why zones belonging to different sources sit side by side rather than nesting neatly around one point.

It is worth separating two things that share a word here: a source protection zone is about protecting a supply from what a site does, while groundwater flooding is about what the water table does to the site. A zone says nothing about the second. The published polygons are also dissolved and stripped of source identity for national security reasons, so the data shows the zone but never the abstraction it protects. A report can state that a site lies in SPZ2; it cannot name the source, the operator or the borehole without a separate enquiry to the Environment Agency.

The source protection zone that appears on no map

This is the trap that catches rural sites, and it follows directly from the statutory definition.

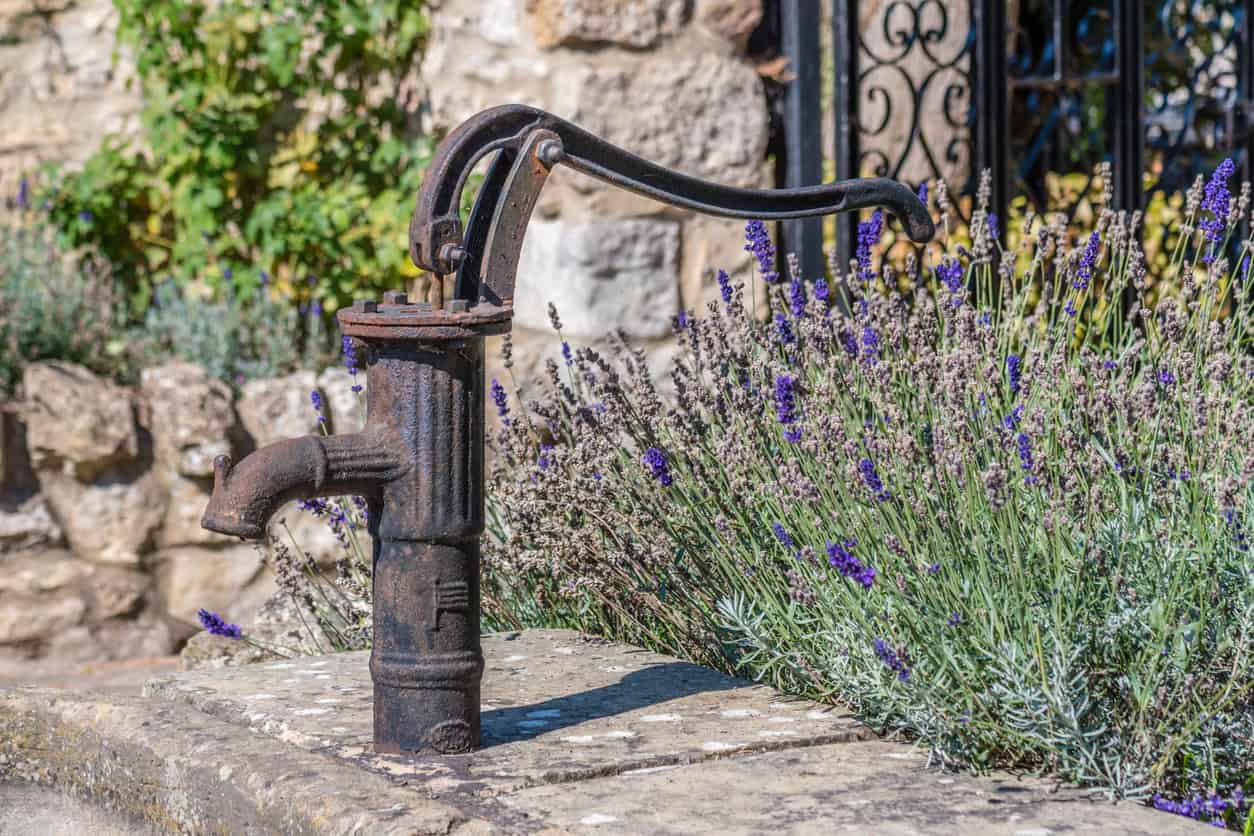

Every groundwater abstraction for human consumption or food production carries a default SPZ1 with a minimum radius of 50 metres, whether or not a zone has ever been mapped around it.

England has upwards of 70,000 small potable supplies. The Environment Agency has never published zones around them and says so plainly: details of private water supplies "are not held on the interactive maps", and anyone carrying out a groundwater activity "must know if you are within 50 metres of a private water supply". Its guidance on small sewage discharges goes further and tells applicants to ask the neighbours.

A clean MAGIC result is therefore evidence about mapped public supplies. It is not evidence that no source protection zone applies. On a rural site with a farm, a cottage or a food business nearby, the question has to be asked on the ground, and it belongs in the foul drainage strategy as much as the surface water one.

Where do source protection zones appear in planning policy?

Almost nowhere, which surprises people.

A full-text search of the National Planning Policy Framework published on 17 August 2026 returns no occurrence of "groundwater", "aquifer", "source protection zone" or "abstraction". The August 2026 rewrite replaced paragraph numbers with coded policies, and the only water-quality hooks are generic: policy P3 asks that development not cause "unacceptable levels of air, noise, artificial light, water, soil or other forms of pollution", and names chalk streams as its example of a sensitive water body. Groundwater has no equivalent mention.

The Planning Practice Guidance does name the zones, in the one place that matters for drainage:

There is also no statutory requirement to consult the Environment Agency because a site is in a source protection zone. Its statutory triggers under the Development Management Procedure Order are specific: mining, works near a main river, mineral oil storage, cemeteries, development in Flood Zones 2 and 3, and major development not using a sewerage undertaker for sewage disposal. A major housing scheme in SPZ1 with mains foul drainage and infiltration surface water drainage meets none of them unless it is also in a flood zone.

The SPZ consultation trigger is real, but it is policy. It appears in joint Environment Agency and Natural England guidance for planning authorities, which lists development that "is in or likely to affect groundwater in source protection zones" alongside genuine statutory triggers without distinguishing between them. Local plan policy is where the zones do most of their work, and those policies vary sharply between authorities. That is also why an objection from a drainage consultee in one district can look nothing like the same site's treatment in the next.

What a source protection zone changes for drainage

Less than the folklore suggests, and more precisely.

The most repeated claim in the field is that infiltration is prohibited in SPZ1. It is not.

• Clean roof water is expressly acceptable in SPZ1. No permit is required, provided downpipes are sealed against other flows and the method creates no new pathway to groundwater and mobilises no existing contamination.
• Anything else needs an assessment, not a refusal. For infiltration drainage carrying more than clean roof water in SPZ1, a hydrogeological risk assessment is expected; the objection follows only where that assessment fails to show acceptable risk.
• Deep systems are treated as exceptional everywhere. Borehole and shaft soakaways face six cumulative tests wherever they are proposed, and the 2025 National Standards put deep-bore infiltration outside the SuDS approach altogether.
• Contaminated ground is a separate trigger. Surface water infiltration at a contaminated site or a pollutant-storage site is likely to need a permit regardless of whether any source protection zone applies.
• Physical disturbance is its own objection route. Inside SPZ1 the Environment Agency will normally object in principle to development that may physically disturb the aquifer, which catches piling, basements and deep drainage independently of water quality.

The trigger is narrower than most drainage submissions assume. The requirement for a hydrogeological risk assessment sits in SPZ1 only. Requirements in SPZ2 and SPZ3 come from water companies, lead local flood authorities and Environment Agency area teams rather than from the published position statements. Southern Water, for instance, asks for a full assessment in both SPZ1 and SPZ2, which goes beyond the national position.

One number deserves particular care. The widely cited one metre of unsaturated ground beneath an infiltration feature is not an Environment Agency requirement and appears nowhere in its groundwater position statements. It comes from CIRIA C753, which describes it as a pragmatic design approach, and it became a firm requirement in England through the 2025 National Standards for Sustainable Drainage Systems. The Environment Agency's own 1.2 metre figure belongs to foul drainage fields under BS 6297, and is regularly misquoted as a surface water rule. The two tests are not interchangeable, and nor are BRE 365 soakaway testing and BS 6297 percolation testing.

Where infiltration is genuinely ruled out, the fallback is the rest of the discharge hierarchy: rainwater reuse above it, then a surface water body, a surface water sewer, and a combined sewer last. Losing infiltration removes the volume reduction it provided, so attenuation storage grows and a third-party discharge agreement becomes necessary. A desk check of the ground conditions is worth running before any of that is assumed either way, and whether infiltration testing is needed at all is a question best settled early rather than at consultee stage. Where a lined system is the answer, tanked permeable paving keeps the treatment benefit without the discharge to ground.

What the Environment Agency actually objects to

Objections on water quality grounds are rarer than reputation suggests, and they are mostly about evidence rather than harm.

The Environment Agency recorded 180 initial water-quality objections across the whole of England in 2024 to 2025. The largest single category, 58 of them, was insufficient information.

Non-mains drainage accounts for most of the substantive objections in that dataset. The pattern is consistent with the position statements themselves: the Environment Agency applies the precautionary principle "in the absence of adequate information with which to conduct an assessment", so a thin submission produces the same objection as a genuinely risky one.

That is worth knowing because it is curable. An objection grounded in missing evidence is answered with evidence, and the drainage information a planning application needs is largely settled before anyone objects: a conceptual model, a water features survey, seasonal groundwater monitoring, and an assessment proportionate to the zone. The appeal record shows what happens when it is not. In an August 2025 appeal at Dorking, a materials recycling facility in SPZ2 was refused with the inspector giving "considerable weight to the objection of the Environment Agency" over drainage detail, and rejecting the argument that a condition could resolve it later.

What has changed since 2024

Three things, and one worth watching.

The Environment Agency's governing document has not moved. Its approach to groundwater protection remains at version 1.2, dated 2018, and has been formally under review since October 2023 without republication. It is now wrong in at least one respect: it states that no permit is required for a closed-loop ground source heating system, which ceased to be true on 2 October 2023.

The published zones, by contrast, have moved. The dataset was revised on 6 March 2026, with no changelog identifying which zones changed, so extents should be pulled live rather than reused from an old constraints plan.

For sites in West Sussex, the water neutrality requirement in the Sussex North Water Supply Zone was withdrawn by Natural England on 31 October 2025, a change covered in full in Unda's guide to water neutrality in planning. It is worth being clear about what that did and did not do. It removed a planning constraint. It did not open the aquifer: the Environment Agency's abstraction licensing strategy for the Arun and Western Streams still records no water available at the Hardham groundwater unit and no new consumptive licences in the Chichester and Worthing Chalk, and source protection zone controls are untouched by the withdrawal.

Getting it right first time

A groundwater source protection zone is rarely the reason a scheme fails. Thin evidence about one frequently is. The zone is a screening flag; what follows it is a site-specific question about pathways, receptors and the quality of what reaches the ground.

Where a site sits in a zone, the practical work is establishing which constraint applies and on what authority, whether statute, position statement, local plan policy or a water company's own standard, and then evidencing the strategy to match. Unda's chartered consultants can prepare a surface water drainage strategy for a site in a source protection zone, including the infiltration case, the groundwater evidence and the response when a consultee queries it, and can take the same scheme through to discharging the drainage conditions after permission. Where the site also needs one, a flood risk assessment for planning is normally prepared alongside it, and the drainage strategy hub sets out which document a given validation list is asking for. Call 01293 214444 or email enquiries@unda.co.uk for a fixed-fee quote within 60 minutes on a working day.
